    Product description

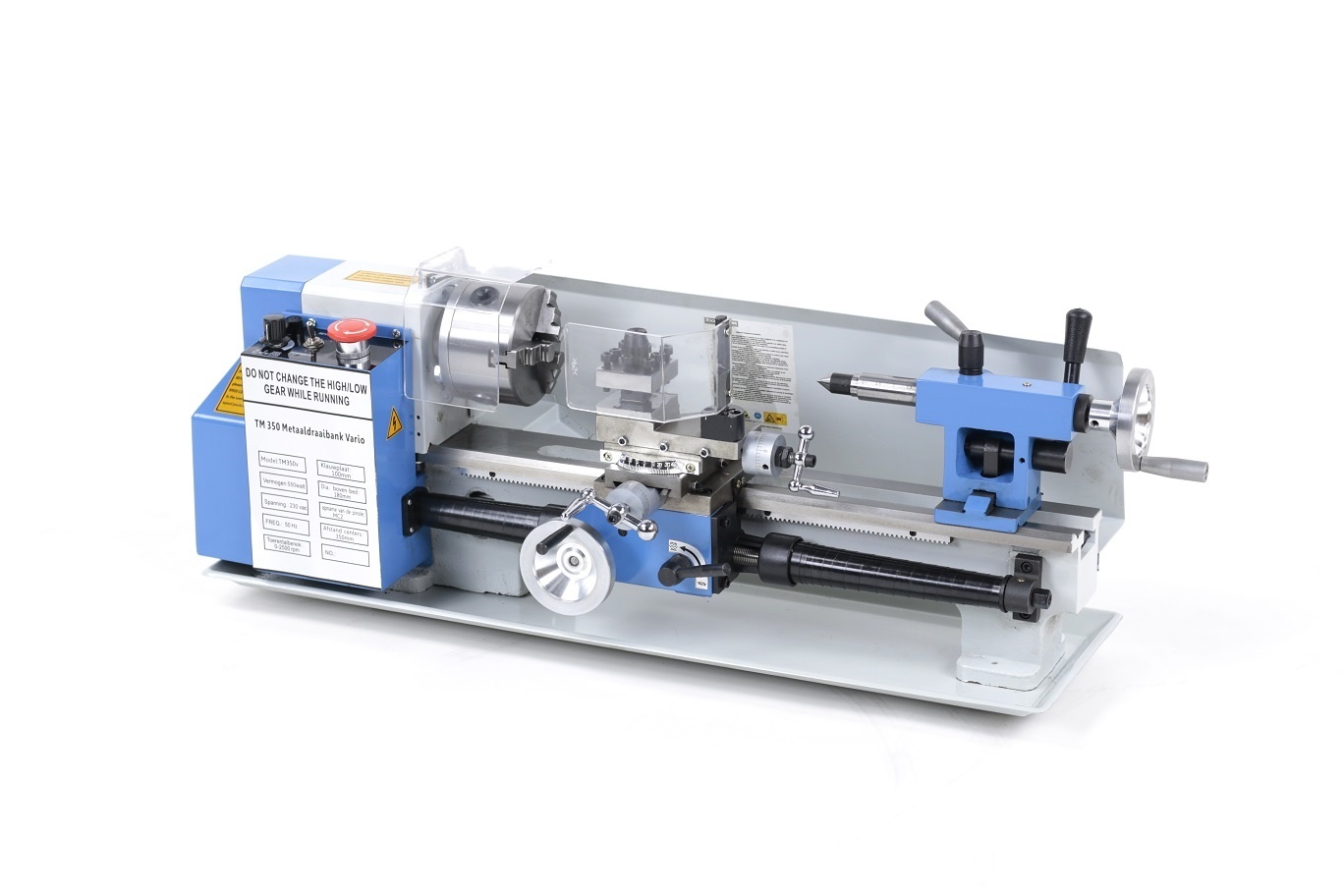

    Technical data of the TM 180 x 300 Vario metal lathe.

    Turning diameter above the bed180 mm.
    Turning diameter above the cross support110 mm.
    Center height90 mm.
    Distance between the centers300 mm.
    Bed width85 mm.
    Relocation of the cross support65 mm.
    Relocation of the cone support55 mm.
    Passage of the main axis20 mm.
    Chuck plate recordingFlange mounting.
    Recording of the main axisMC 3.
    Speed range continuously adjustable from100 - 2500 RPM.
    Metric thread cutting range0.4 - 2 mm. (10 positions)
    Stroke of the pinole60 mm.
    Diameter of the pinole20 mm.
    Recording of the pinoleMC 2.
    Engine power500 watts.
    Voltage230 volts.
    Weight37 kg.
    Packaging dimensions78 x 36 x 38 cm.





    This metal lathe is supplied as standard.

    • Extra heavy electric motor 500 watts.
    • Equipped with ONLY metal gears!
    • Variable adjustable speed.
    • Heavy quality metal hand wheels.
    • 3 Chuck 100 mm.
    • 4-way chisel holder.
    • Drip plate.
    • Back wall.
    • Hardened bed jobs.
    • Long feeding.
    • Protected against zero voltage.
    • Chuck and support protection.
    • Set of change wheels.
    • Related tools.

    Specifications

    Article number
    9561
    SKU
    MX0618
    EAN
    7433648690693
