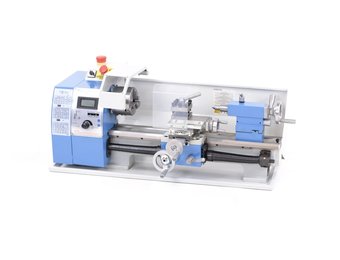

    TM 210 x 400 Vario Metal lathe with digital display

    Brand: TM
    €999,99
    €799,99 Out of stock
    • Scherpste prijzen
    • 14 jaar gereedschapsspecialist
    • Fysieke winkel
    • Groot voorraad

    Product description

    Technical data of the TM 210 x 400 Vario Metal lathe with digital display.

    Turning diameter above the bed210 mm.
    Turning diameter above the cross support115 mm.
    Center height105 mm.
    Distance between the centers400 mm.
    Bed width100 mm.
    Relocation of the cross support75 mm.
    Relocation of the cone support55 mm.
    Passage of the main axis21 mm.
    Chuck plate recordingFlange mounting.
    Recording of the main axisMC 3.
    Speed range continuously adjustable from0 - 2500 RPM.
    Thread cutting range imperial10 - 44 TPI. (8 positions)
    Metric thread cutting range0.5 - 3 mm. (11 positions)
    Stroke of the pinole65 mm.
    Diameter of the pinole30 mm.
    Recording of the pinoleMC 2.
    Engine power750 watts / 1 hp.
    Voltage230 volts.
    Weight76 kg.
    Packaging dimensions88 x 48 x 46 cm.





    This metal lathe is supplied as standard.

    • Equipped with an extra heavy engine.
    • 3 Chuck 100 mm.
    • 4 Road chisel holder.
    • Drip plate
    • Hardened bed jobs.
    • Long feeding.
    • Protected against zero voltage.
    • Chuck and support protection.
    • Set of change wheels.
    • Related tools.

    Specifications

    Article number
    98442
    SKU
    MX210D
    EAN
    7433648691614
