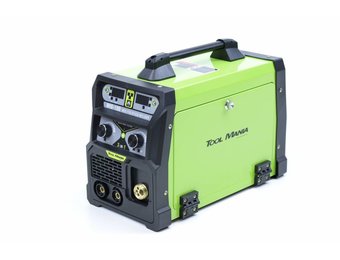

TM MIG / LIFT TIG / MMA Welding Machine with IGBT Technology
PAY ATTENTION !!
The Welding machines and Plasma cutters we offer are of heavy professional quality, ideal for the Automotive market, among others!
Many look a like models have been offered lately with the following different specifications:
- TM uses 100% IGBT Transformer, in contrast to Competitors who offer it as IGBT Technology. Pay attention! this just contains old MOS Transformer in which both durability and endurance fall sharply to temperature Increase!
- TM welding machines are ideal for automotive work.
- TM uses the best electric motors where the rotation is extremely smooth.
- TM Uses thick copper cables for smooth current conduction.
- TM uses Insulation class F.
- Thanks to the IGBT transformer, this machine scores extremely well in duty cycle%.
Technical data of the TM 180 MIG / LIFT TIG / MMA Welding Machine with IGBT Technology. |
|
| Voltage | 230 volts. |
|
Maximum power: |
MIG: 5.2 KVA MMA: 5.3KVA ELEVATOR TIG: 3.3KVA |
| Power factor | 0.93 |
| Control range |
MIG: 50-180A MMA: 10-160A ELEVATOR TIG: 10-160A |
| Push button for fast roasting | Yes. |
| Maximum operating time | 60% |
| Efficiency | 85%. |
| Frequency | 50 / 60Hz. |
| Air consumption approx. | No. |
| Digital display | Yes. |
| Open terminal voltage | |
| Insulation class | H. |
| Security class | IP21S. |
| Weight | 12 kg. |
| Dimensions | 580 x 350 x 450 mm. |
The TM 180 MIG / LIFT TIG / MMA Welding Machine with IGBT Technology. |
|
|
|
|
|
|
|
|
|
|
|
|
