    Product description

    PAY ATTENTION !!
    The ultrasonic cleaners offered by us are of heavy professional quality, ideal for the Automotive market!


    Lately many look a like models have been offered with the following deviating specifications:



    • TM Use 100% high quality stainless steel plates.
    • TM Ultrasonic cleaners have a self-supporting bottom frame.
    • TM uses built-in ergonomic handles ... not on screwed handles!
    • TM use low drive voltage for safe operation.
    • TM use IGBT transistors! Almost all other suppliers offer the cheap MOS transistors with lifespan being limited to min. 40%!
    • TM use heating on all models. this compared to the competitors!
    • TM ultrasonic cleaners are sealed all around.
    • All the differences listed above are actually recorded and comply with the ISO and NEN standards! (also request this from our competitors!)

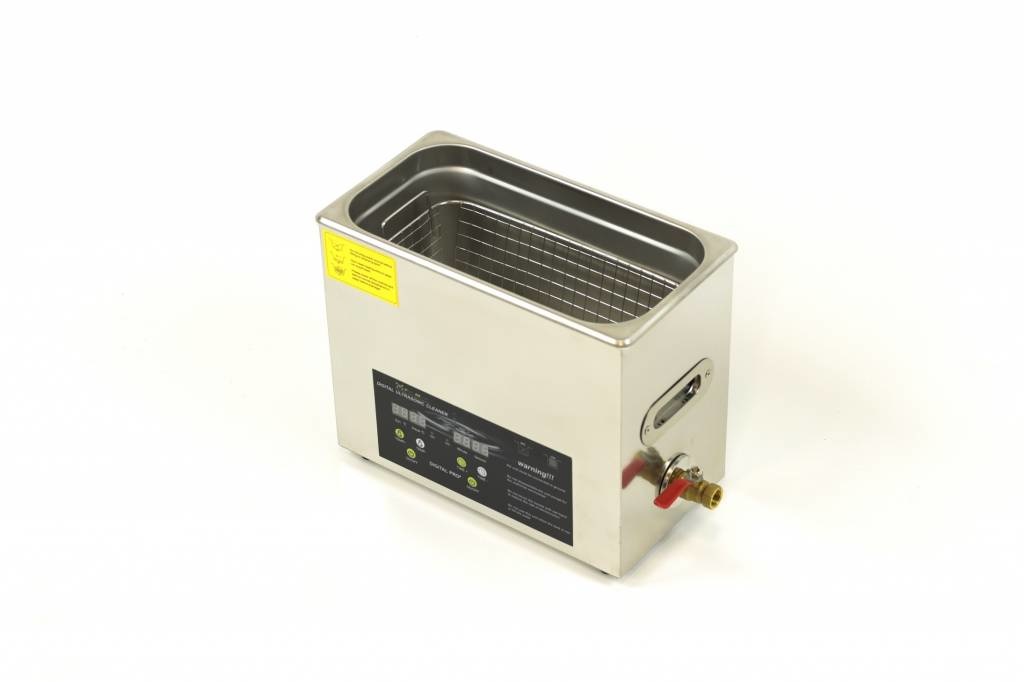

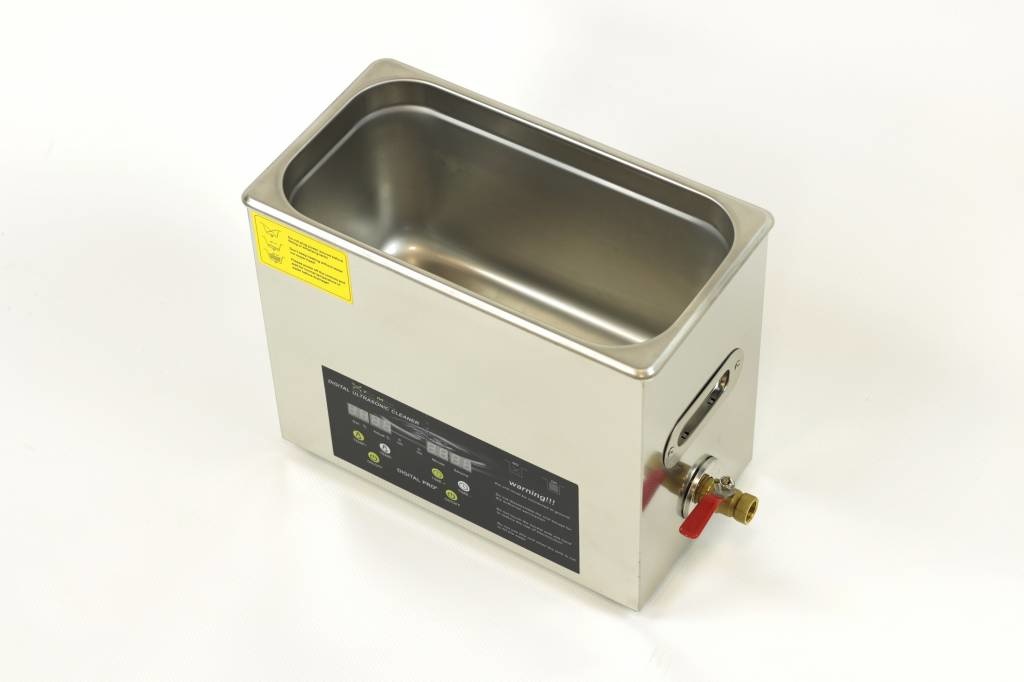

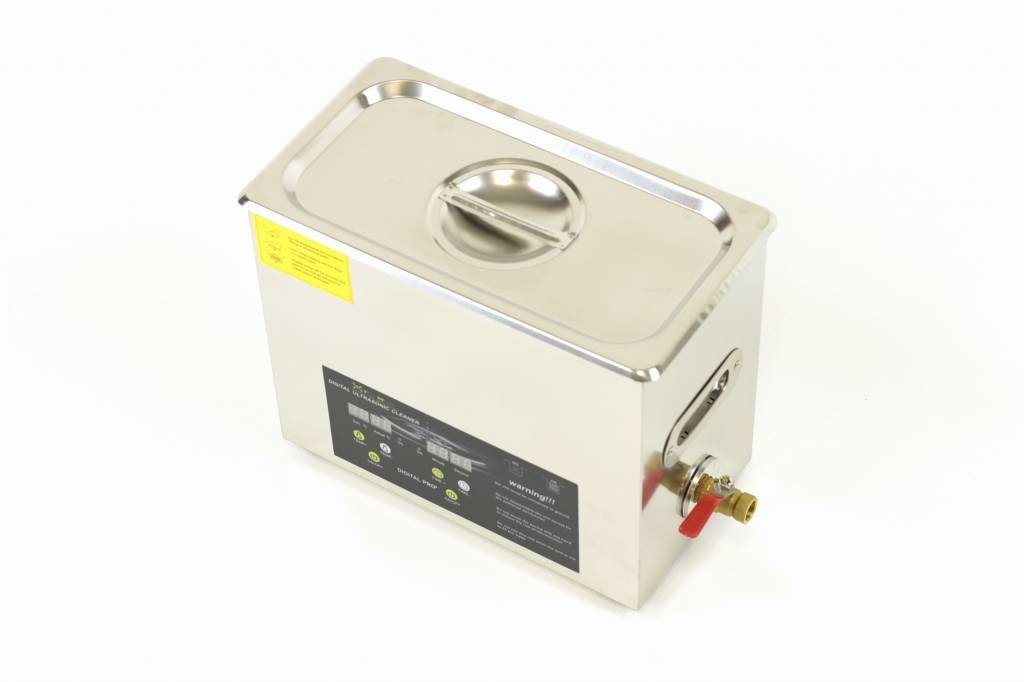

    Product description of TM 6.5 Liter Ultrasonic Cleaner

    The ultrasonic cleaner works on the basis of the Cavitation effect caused by high frequency ultrasonic shock waves in liquid. Microscopic vapor bubbles are formed, and they implode with great force, creating the cavitation that gives a great impact to the object to be cleaned, and creates an intensive rubbing action on the surface of the object to be cleaned. In addition, the vapor bubbles are small enough to penetrate even microscopic slits, ensuring thorough and consistent cleaning. As one of the basic applications of ultrasonic waves, the ultrasonic cleaner has a strong dirt removal capacity and a brilliant cleaning effect. The ultrasonic cleaner is widely used for cleaning optical instrument parts, clock parts, mini bearings, electric piston units, semiconductors, missile guidance systems, filament parts, spinnerets for producing chemical fiber, medical needles, grease nipples, throttle heads. In addition to very thorough cleaning, the ultrasonic cleaner is also used to pulverize, block, emulsify, mix, remove oxidized iron layers, accelerate a chemical reaction, etc. in an ultrasonic manner.


    Technical data of the TM 6.5 Liter Ultrasonic Cleaner.

    Total power400 Watt.
    Heating power200 Watt.
    Power of the vibrating element at settings 1 and 2120 Watt.
    Power of the vibrating element at position 3160 Watt.
    Power of the vibrating element at settings 4 and 5180 Watt.
    Voltage230 volts.
    Contents of the bath6.5 liters.
    Maximum temperature80 degrees.
    Overall dimensions175 x 325 x 260 mm.
    Dimensions of the bath150 x 300 x 145 mm.
    Dimensions of the basket15 x 29 x 13 cm.
    Packaging dimensions450 x 300 x 430 mm.
    WeightApprox. 5.6 Kg.



    This ultrasonic cleaner is supplied as standard.

    • Instruction manual.

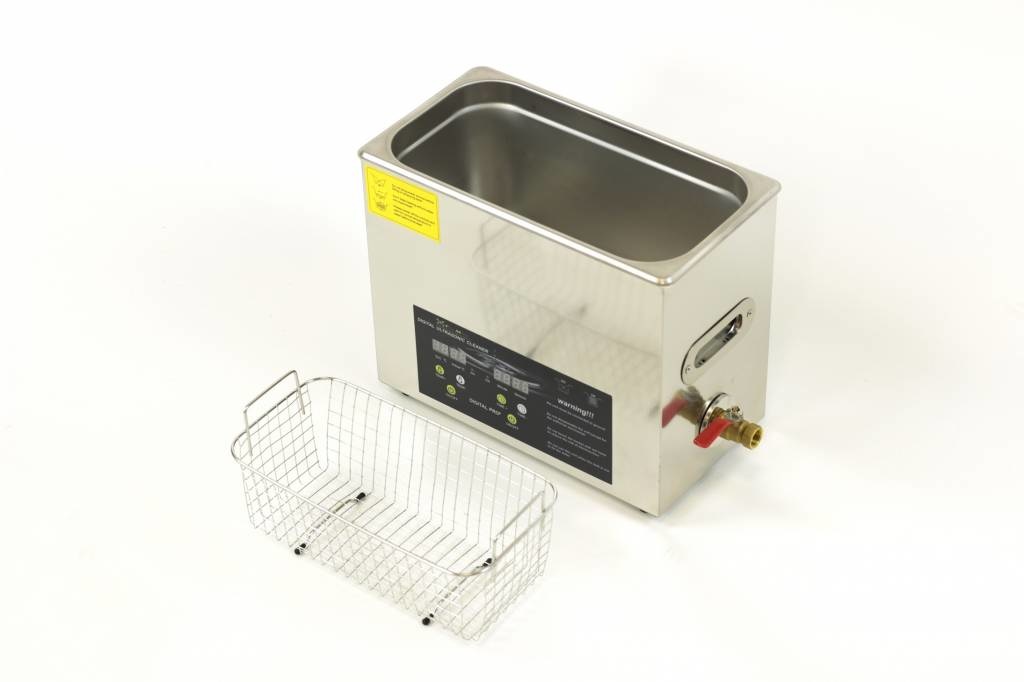

    • Stainless steel insert basket + Plug.



    Other specifications.

    • The whole is made of stainless steel.
    • Digital Time and Temperature Meters.
    • Digital adjustable power.
    • Frequency. (40 Khz.)
    • CE and ROHS certified.

    Specifications

    Article number
    110010003
    SKU
    00061
    EAN
    7433649247230

    Show more

    Accessoires

    Complete your purchase

    Professional 6.5 Liter Ultrasonic Cleaner
    € 399,99
    € 148,99
    Professional 6.5 Liter Ultrasonic Cleaner
    In stock
