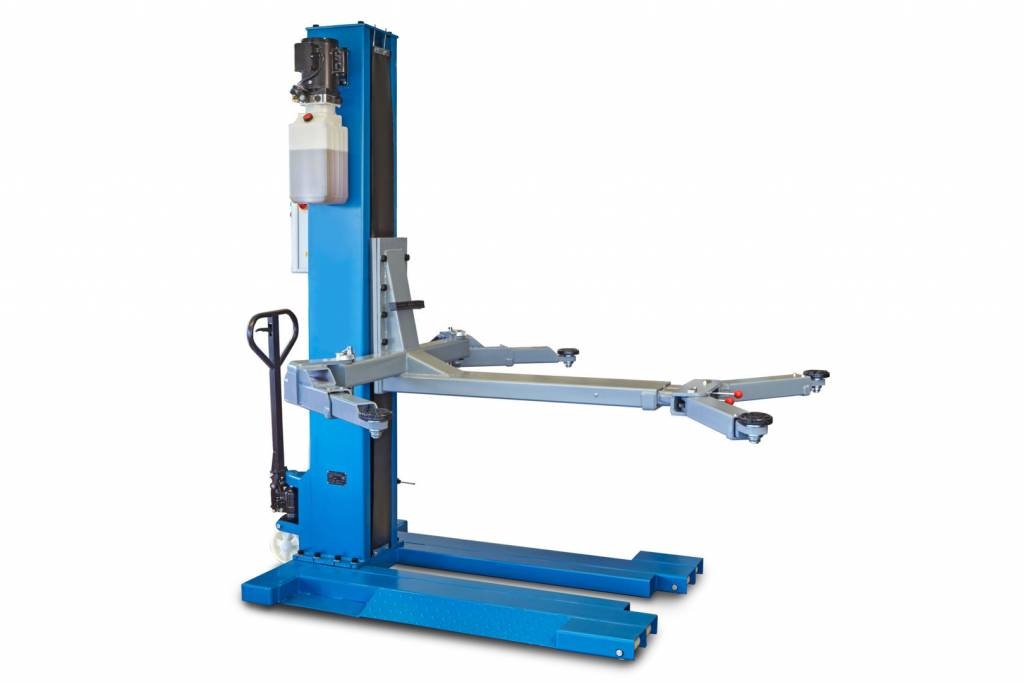

    Mobile 1-column lift with electronic release

    Brand: TM
    €3.499,99
    €3.199,99 In stock: Early bird levertijd ca. 3 - 4 weken
    • Scherpste prijzen
    • 14 jaar gereedschapsspecialist
    • Levering 1 tot 3 werkdagen
    • Groot voorraad

    Product description

    TOOLMANIA is the only supplier in the Benelux to introduce the fully automatic 1-column lift bridge with electric unlocking on 24v!



    Technical data of the TM Mobile 1 Column Lift Bridge with Electronic Release.

    Lift capacity2500 Kg.
    Lift height1800 mm.
    Height of column2540 mm.
    Recording width1400-1700 mm.
    Lifting speed55 Second.
    Power / working voltage2.2kW / 220-230 Volt.
    Required hydraulic oil 10 liters.



    Other specifications.

    • Space-saving single column lift bridge.
    • 24 volt control box
    • 24 volt acoustic foot protection
    • Emergency stop push button
    • Main switch
    • Aluminum motor ideal against overheating
    • A hydraulic cylinder.
    • Forces are transferred by means of strong chains.
    • Freestanding design
    • Strong construction for maximum stability.
    • Mechanical safety locking prevents accidental lowering.
    • Electric 24v safety release
    • Adjustable recording arms at the front and rear.
    • Overload safety valve.
    • CE certified.

    Specifications

    Article number
    5001470
    SKU
    TM2500ES
    EAN
    7433649246240
