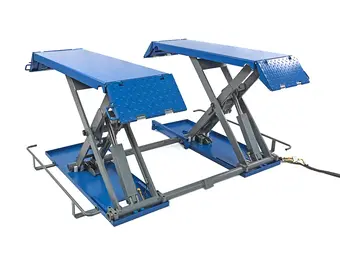

3 Ton Electric Car Power Bridge, Poetsbrug 3.0t 230v
TM Fully automatic cleaning lift electronic 230v
| Product description |
Now 100% NL product with CE certificate.
The strong professional 3.0 ton cleaning bridge / tire bridge, short, extra low scissor lift for installation on the work floor.
The ultra flat lift tables are also suitable for sports cars with very low spoilers. The start-up device makes powerful 3.0-ton lifting possible with the tip-lever lifting system.
| Properties |
- Top quality with CE Certificate.
- Produced according to ISO 9001 standards and NEN 1493.
- CE foot protection at the last cm drop.
- One hydraulic cylinders per lifting table.
- Hydraulic synchronization to concept.
- Mechanical synchronization.
- Automatic safety unlocking electronically.
- Connection between the two lifting tables.
- Tip-lever system for powerful lifting during the first 30 cm.
- Solid construction lifting system, made of steel type 16Mn instead of Q235.
- Emergency system bridge lower in the event of a power failure.
- Cylinders are equipped with metal covers.
- Robust control box.
- Required hydraulic oil 6l.
| Technical data: TML3000 |
| Lifting capacity CE |
3000 kg
|
| Maximum lifting height |
1000 mm
|
| Lowest lifting height |
105 mm
|
| Lifting / lowering time |
45/30 sec
|
| Work stress |
220-230V / 1 Phases
|
| Engine power |
2.2 kW
|
| Fuse |
16 A
|
| Weight |
450 kg
|
| Delivery included |
- Scissor bridge including robust control box
- Trolley pick-up blocks
- wheel kit
- mechanical foot protection
- Operating and maintenance instructions
- CE certificate
- Color: gray / blue
