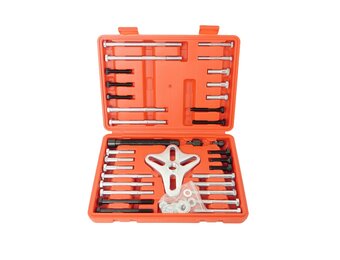

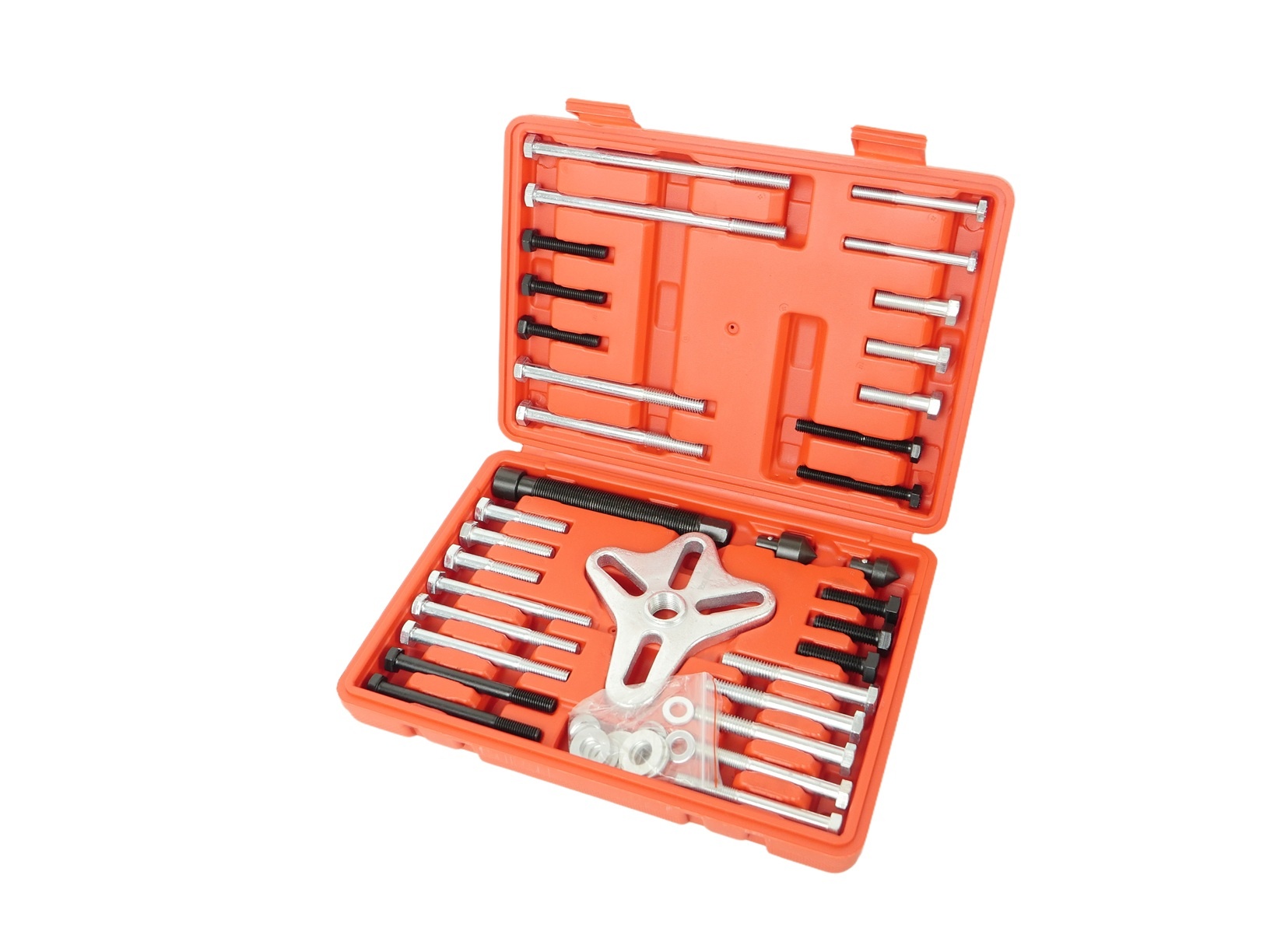

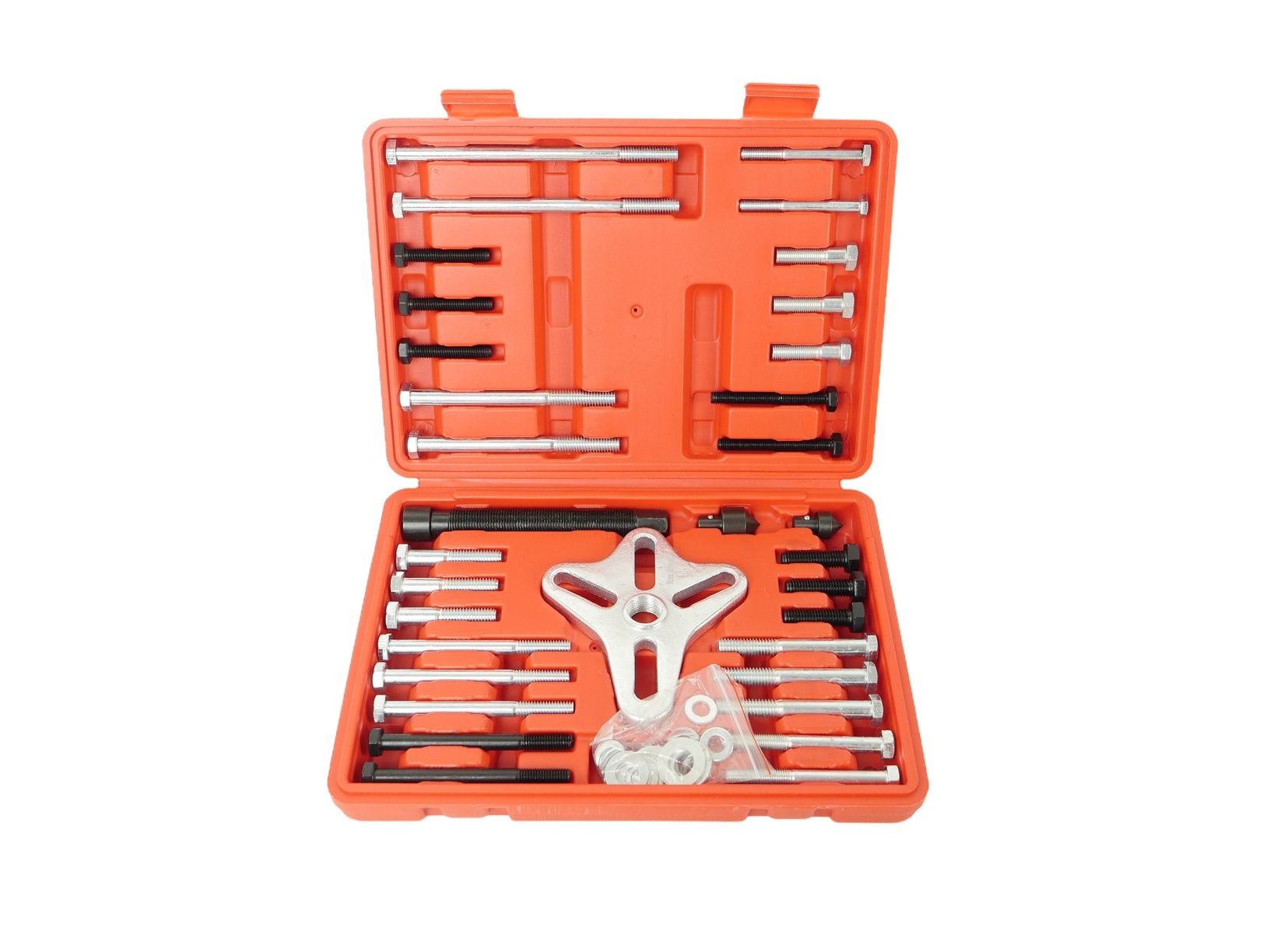

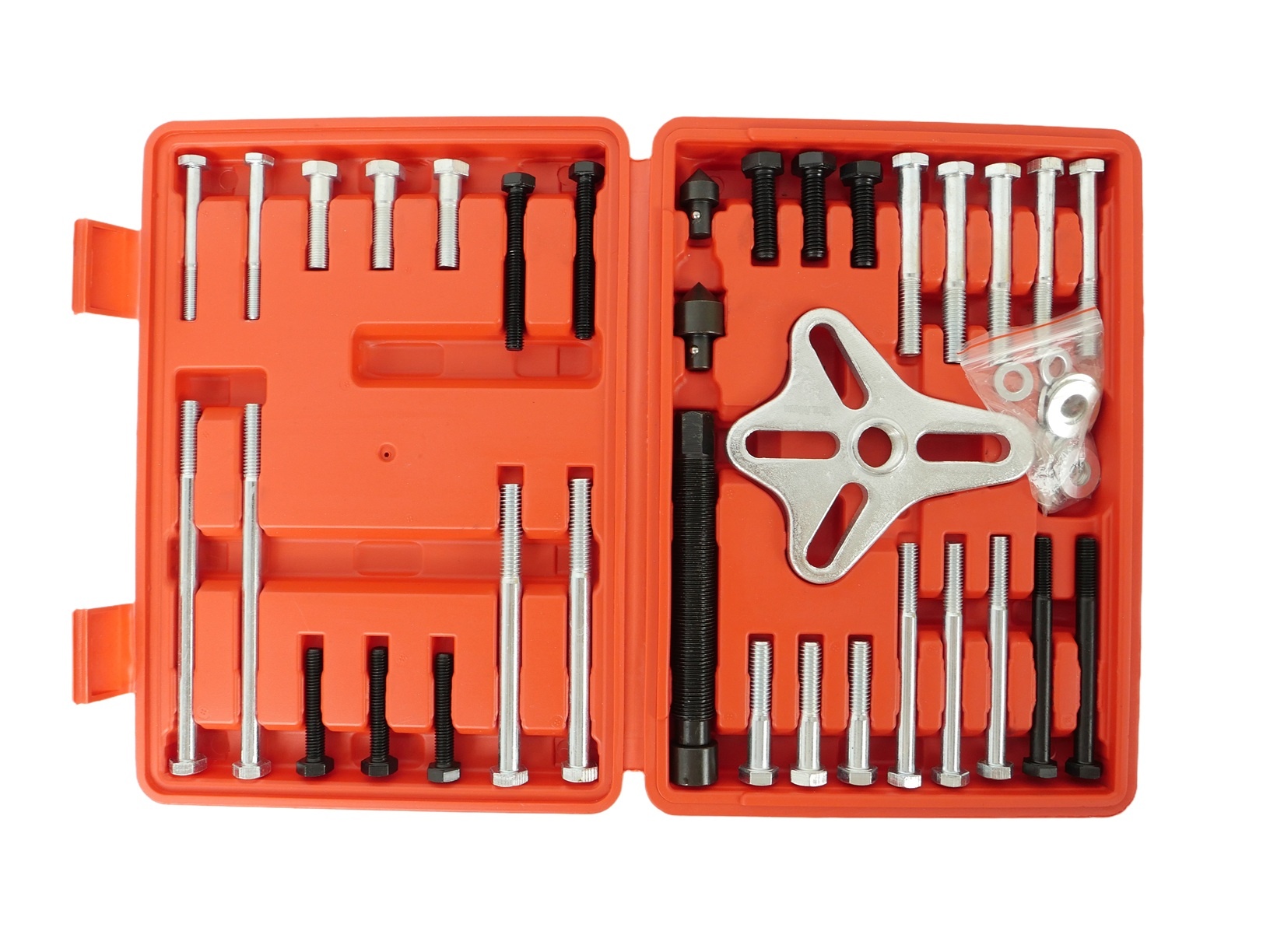

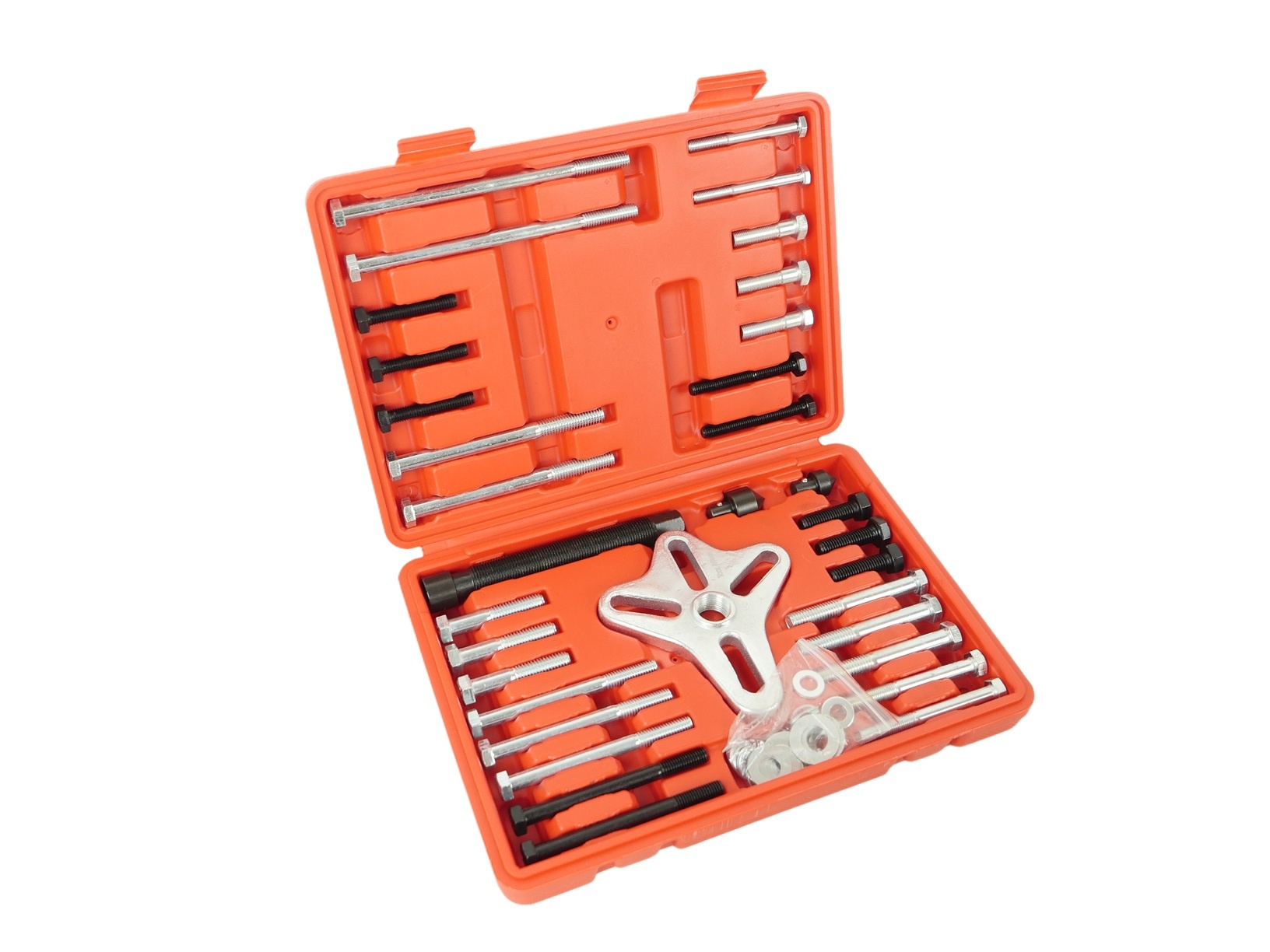

TM 46 Piece Flywheel Puller Set
Product description of TM 46 Piece Flywheel Puller Set

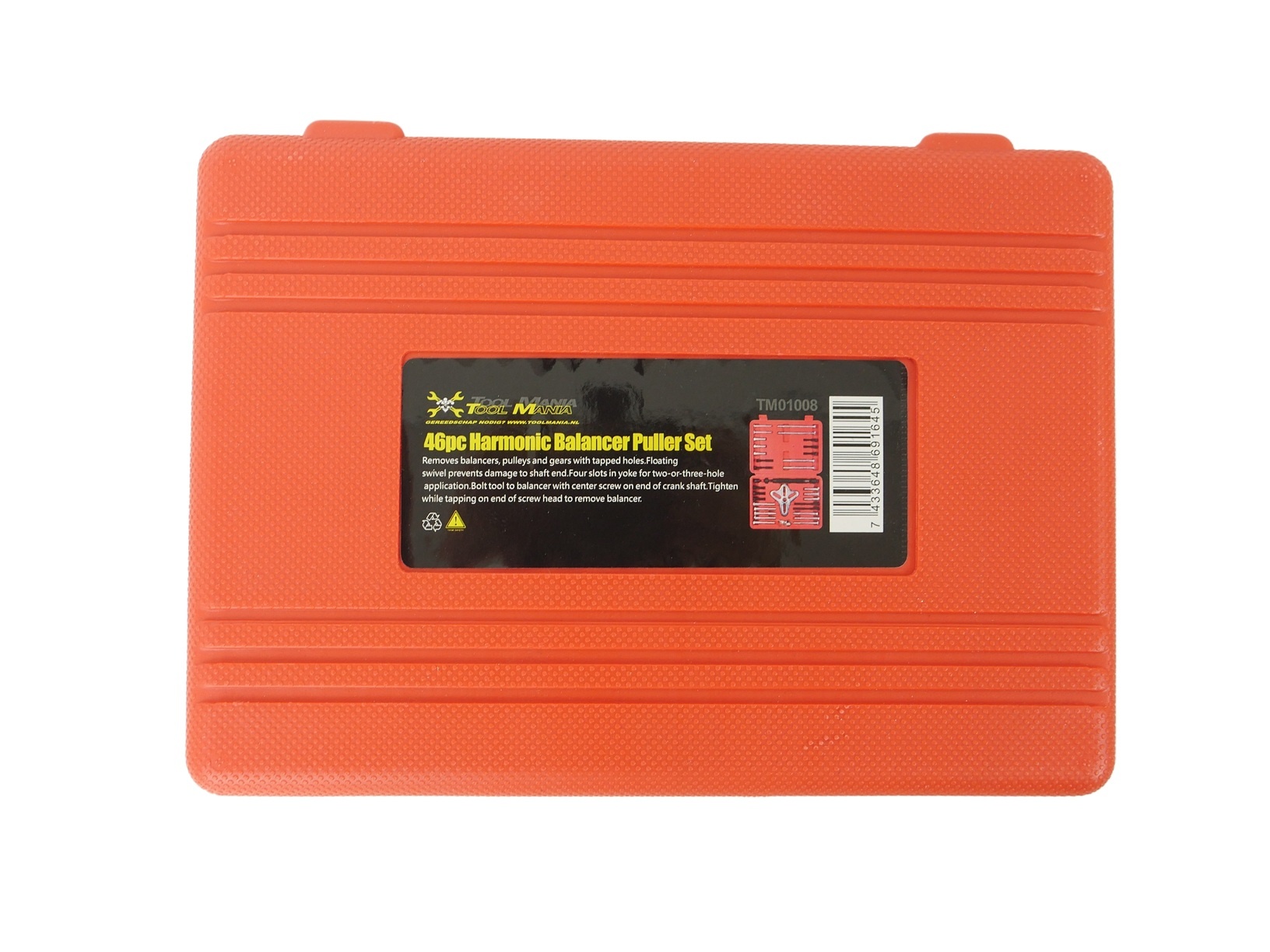

Carbon steel galvanized yoke and bolts. Multipurpose flywheel puller set for removing gears, pulleys and flywheels. Imperial and Metric Bolts. Min / max. clamping range: 40 - 93 mm. Set includes bolts, yoke, washers, compression bolt, 2 adapters and a hard storage case.

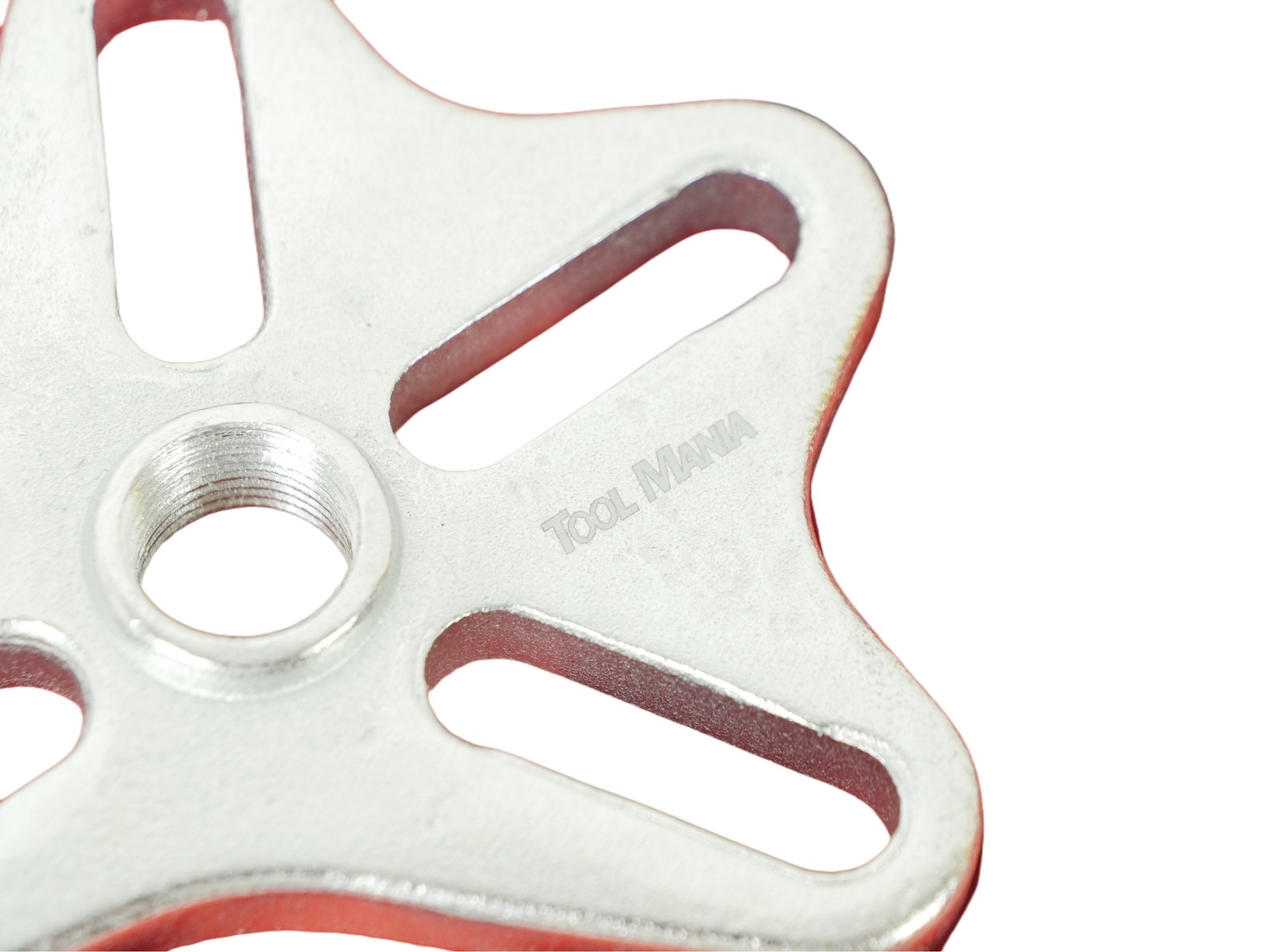

Special features: multi-purpose puller for threaded pinion gears, flywheels, steering wheels, pulleys, vibration dampers, shafts, etc. Suitable for various light tasks, when the correct threads are available. usable set for different applications, also suitable for British standard and metric threads. minimum distance: approx. 35mm, maximum distance: approx. 95mm incl. floating, flat adapters that prevent damage to the shaft end. Four slots in the yoke allow 2- or 3-hole application. Technical data: Weight: approx. 2 kg Case dimensions: approx. 27.5 x 20.5 x 4.5 cm (WxDxH) Scope of delivery: 1 Universal puller set, consisting of: 1x 4-hole steel yoke 1x small centering adapter 1x large centering adapter 1x flat shaft adapter (semicircular recess, floating) 3x 1-1 / 2 "bolts - 3/8" - 24 threads 3x 2 "bolts - 3/8" - 16 threads 5x 3 "bolts - 3/8" - 16 thread 2x 4-1 / 2 "bolts - 3/8" - 16 thread 2x 6 "bolts - 5/16" - 18 thread 3x 3-1 / 2 "bolts - 5/16" - 18 thread 2x 2-1 / 2 "bolts - 1/4" - 28 thread 3x 35mm bolts - M10 x 1.5mm 3x 45mm bolts - M8 x 1.25mm 2x 65mm bolts - M8 x 1.25mm 2x 90mm bolts - M8 x 1.25mm.
