    PAY ATTENTION !!
    The welding machines and plasma cutters offered by us are of heavy professional quality, ideal for the Automotive market!


    Lately many look a like models have been offered with the following deviating specifications:



    • TM uses 100% IGBT Transformer, in contrast to the Competitors who supposedly offer it as IGBT Technology. Pay attention! here are just old MOS Transformer in which both durability and endurance drop sharply to temperature increase!
    • TM welding machines are ideal for automotive work.
    • TM uses the best electric motors where turning is extremely smooth.
    • TM Handles thick copper cables for smooth current flow.
    • TM uses Insulation class F.
    • Thanks to the IGBT transformer, this machine scores extremely well in duty cycle%.

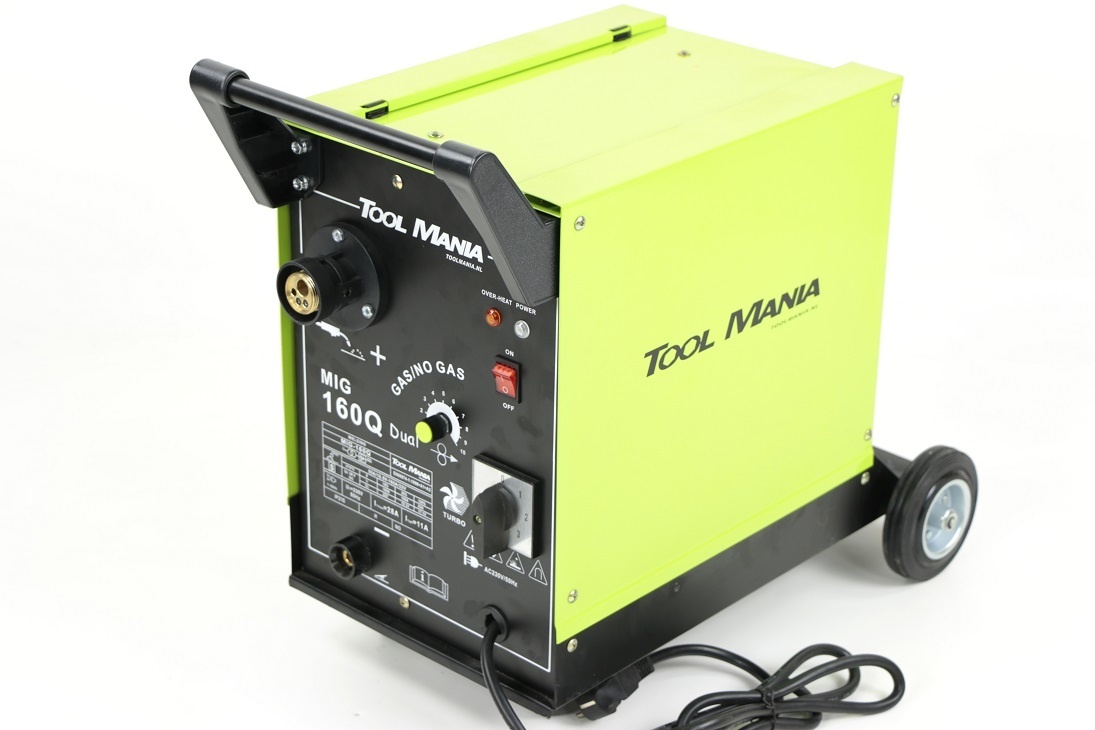

    Technical data of the TM MIG 160Q Welding machine.

    Mains voltage230 Volt.
    Zero voltage59 Volts.
    Amperage min-max35 - 160.
    Duty cycle (current @ 60% at 40 ° C)160 Amps.
    Power consumption 60% / Maximum2.8kva.
    Capacity Steel Welding wire0.8 - 1 mm.
    Capacity stainless steel welding wire0.8 - 1 mm.
    Capacity Aluminum Welding Wire0.8 - 1 mm.
    Wire speedVariable
    Bobbin Max5 Kg. / 200 mm.
    Diameter of the welding tip8 mm.
    Control modes6
    Insulation classH.
    Security classIP21S.
    Mains fuseC16 Amps.
    Dimensions with wheelsx x mm.
    Weight33.5 Kg.

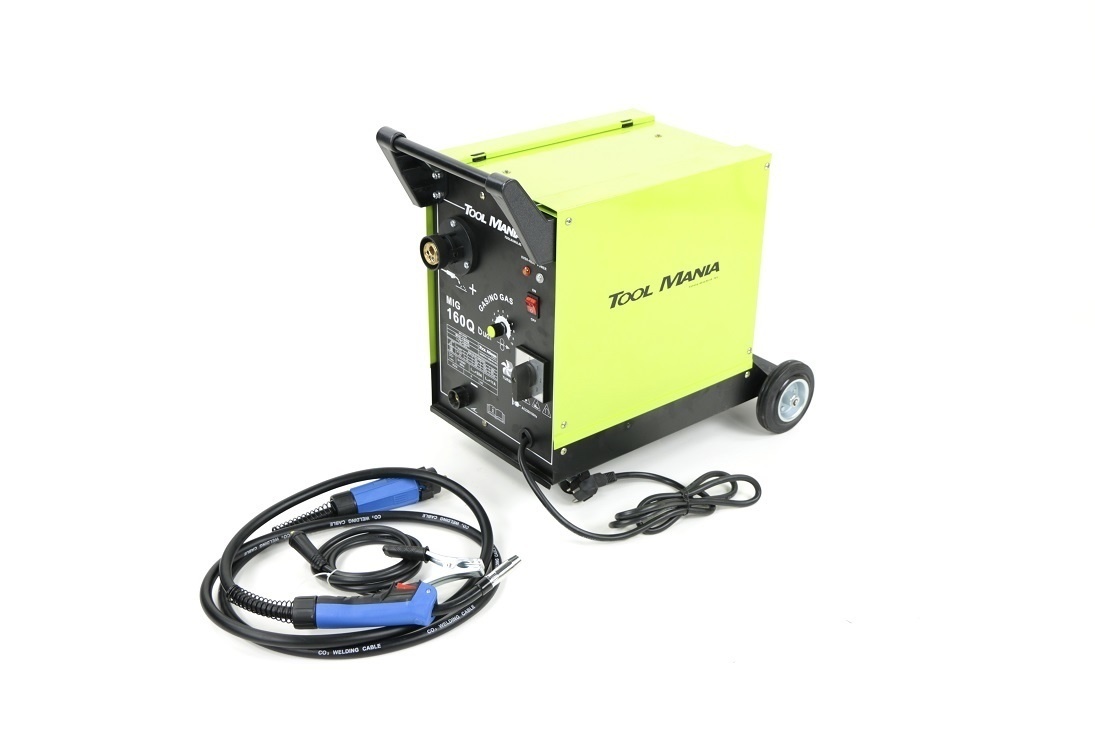

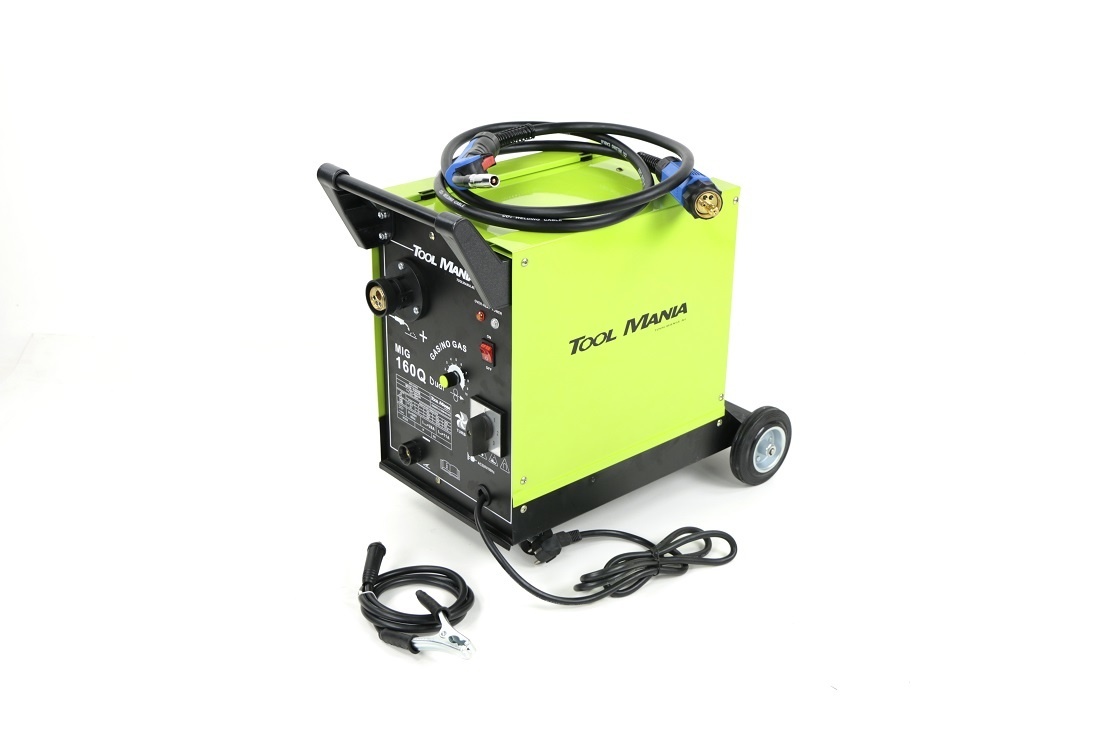

    This welding machine is supplied as standard.

    • Detachable Torch.
    • Grounding clamp.
    • Supplied including plug.





    Other specifications.

    • Single-phase, fan-cooled welding machine for MIG-MAG welding.
    • Suitable for Flux-Core welding.
    • Thermal protection.
    • Universal use for different types of materials
    • such as steel, stainless steel and aluminum.









































    Specifications

    Article number
    130010006
    SKU
    52735
    EAN
    7433648752735
