pay close attention to the fact that this is a dampened compressor in which NO air dryer is provided and with significantly lower performance!
The latest innovation in the field: ULTRA Low Noise Compressors conceived and developed in Sittard Netherlands!
The most suitable compressor for garage owners / DIY
Our Technical Specialists are fed daily by the following customer feedback:
Hereby our solution:

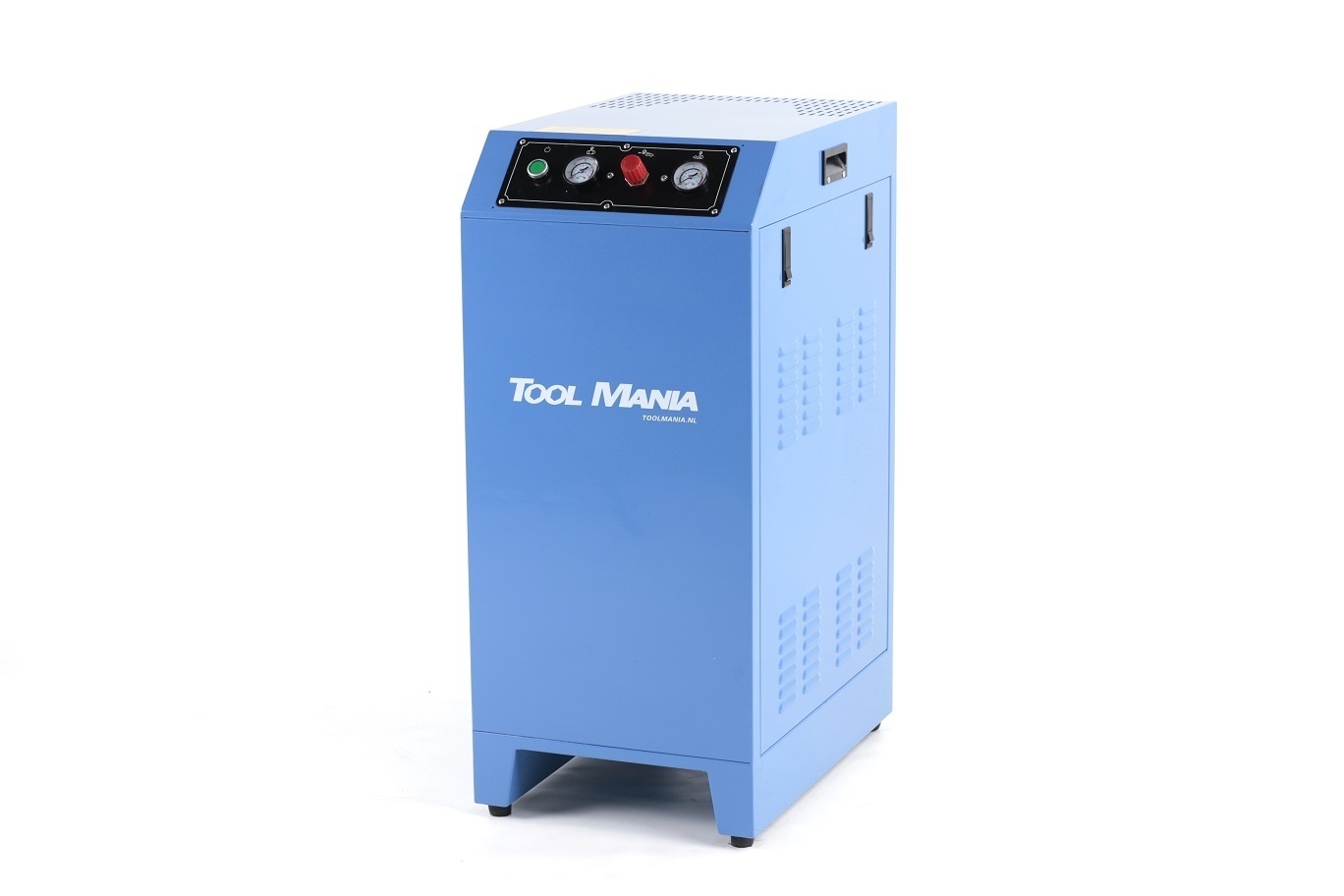

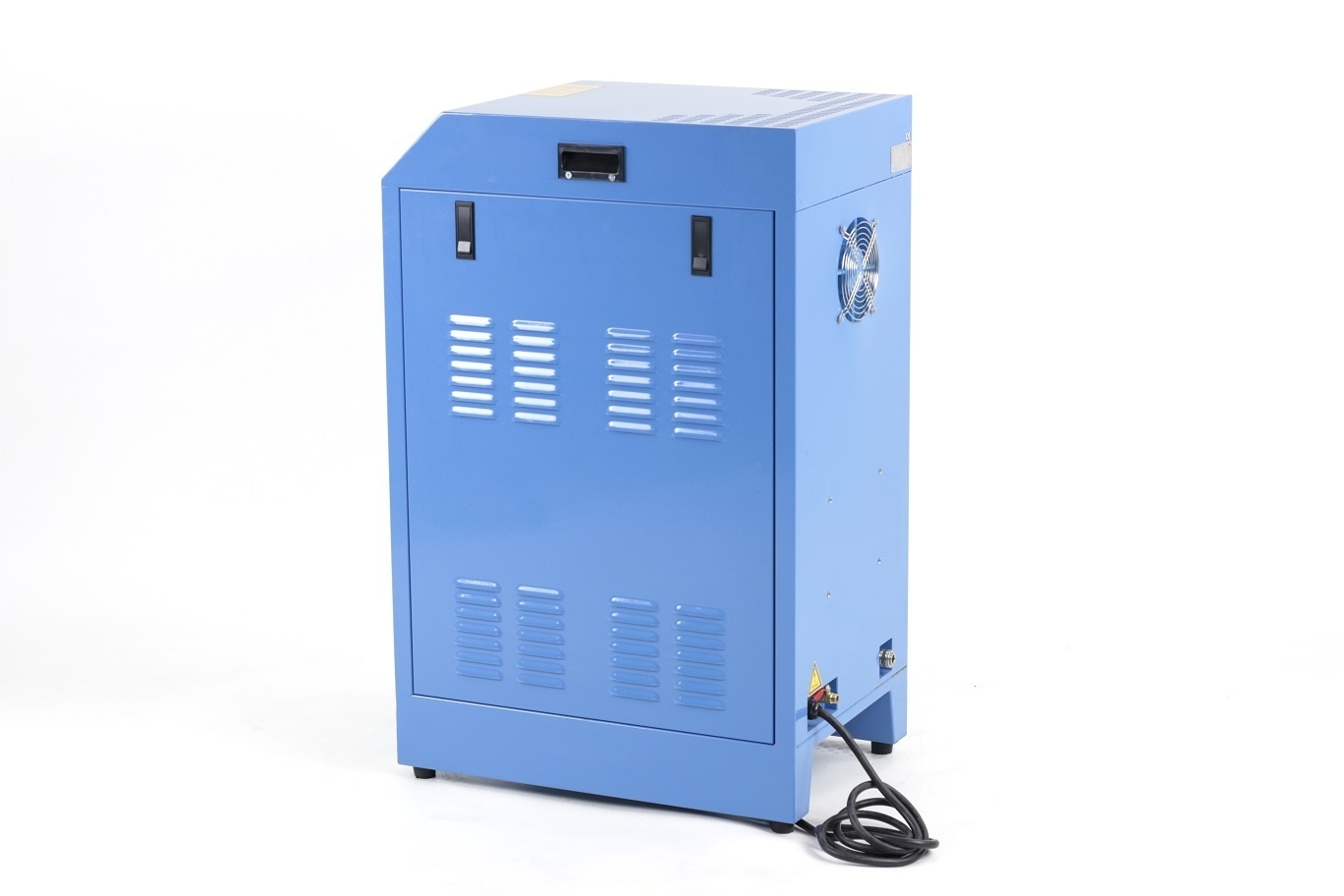

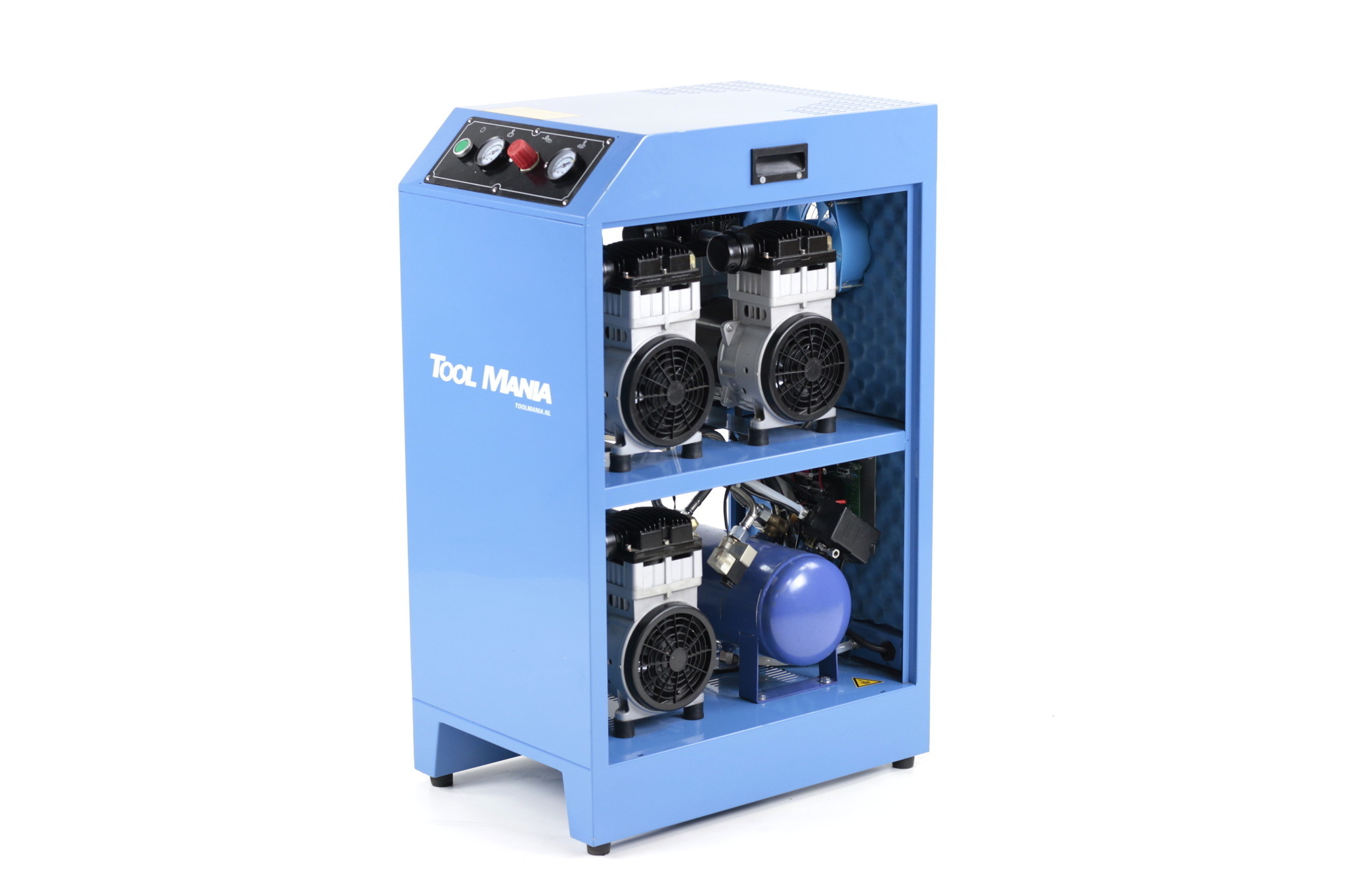

Technical data of the TM ULTRA Low Noise Compressor V3 720 l / pm 230v | |
| Maximum boiler pressure | 10 Bar. |
| Maximum Working Pressure | 8 Bar. |
| Built-in Air Tank | 10l. |
| Engine power | 4600 watts / 6 hp. = 3 x 2hp. |
| Amount of cilinders | 6. |
| Voltage | 230 volts. |
| Insurance | C 25a |
| Noise level | Ca. 50-55 DB (A) |
| Gross Air Yield | 936 Liter / Minute. |
| Net Air Yield | 720 Liter / Minute. |
| Packaging dimensions | 63 x 43 x 98 cm. |
| Weight | 120 kg. |

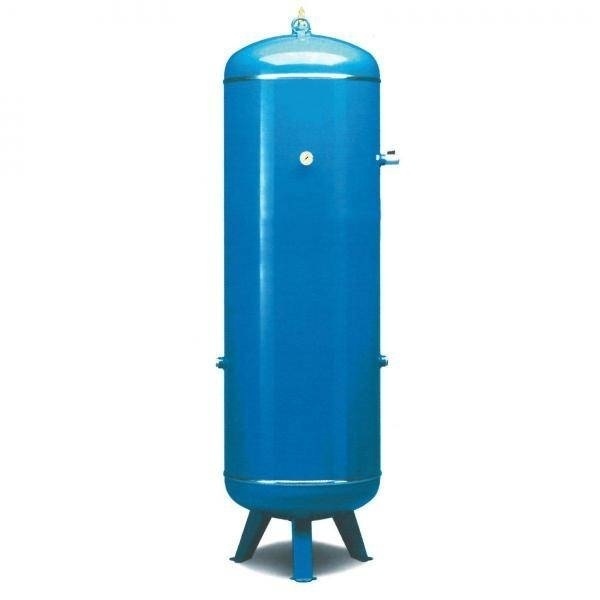

Technical data of TM Pressure vessel, Compressor Tank vertical 270 Liter MADE IN ITALY | |
| Content | 270 liters. |
| Tank size | 50 x 50 x 165 cm. |
| Incoming air connection | 1 " |
| outgoing air connection | 1 " |
| Maximum boiler pressure | 11 Bar. |
| Min / Max Temperature | -10 / +100 degrees. |
| Weight | 67 kg. |

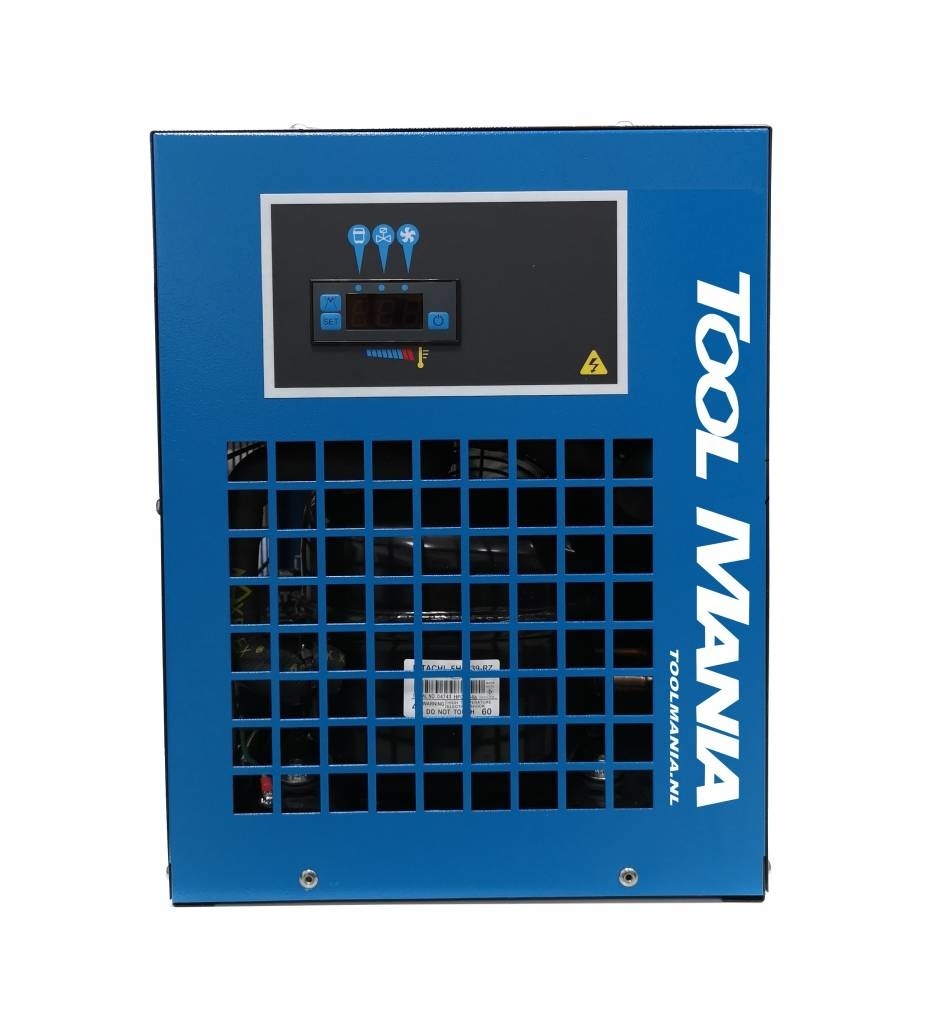

Technical data of the Air Dryer For compressor For 1000 Liter Per Minute. | |
| Maximum capacity | 1000 liters per minute. |
| Maximum working pressure | 16 Bar. |
| Voltage | 230 volts. |
| Connection | 3/4 " |
| Dimensions | 350 x 493 x 450 mm. |
| Production country | Made in Italy |
This compressor is supplied as standard | |
| |
| |
| |
| |
| |
| |
| |
|
