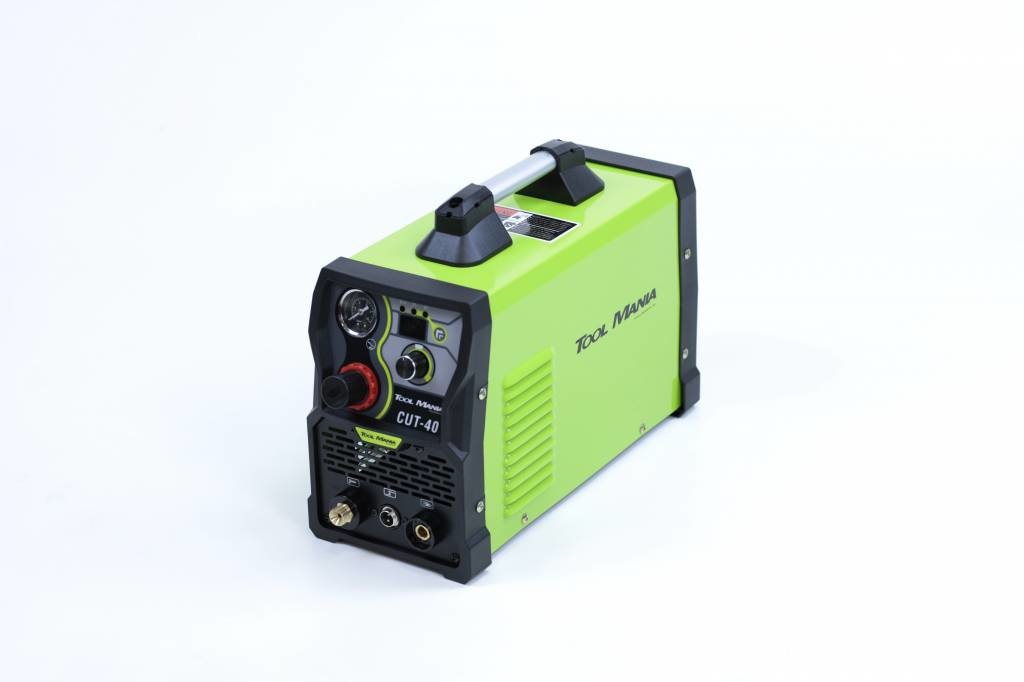

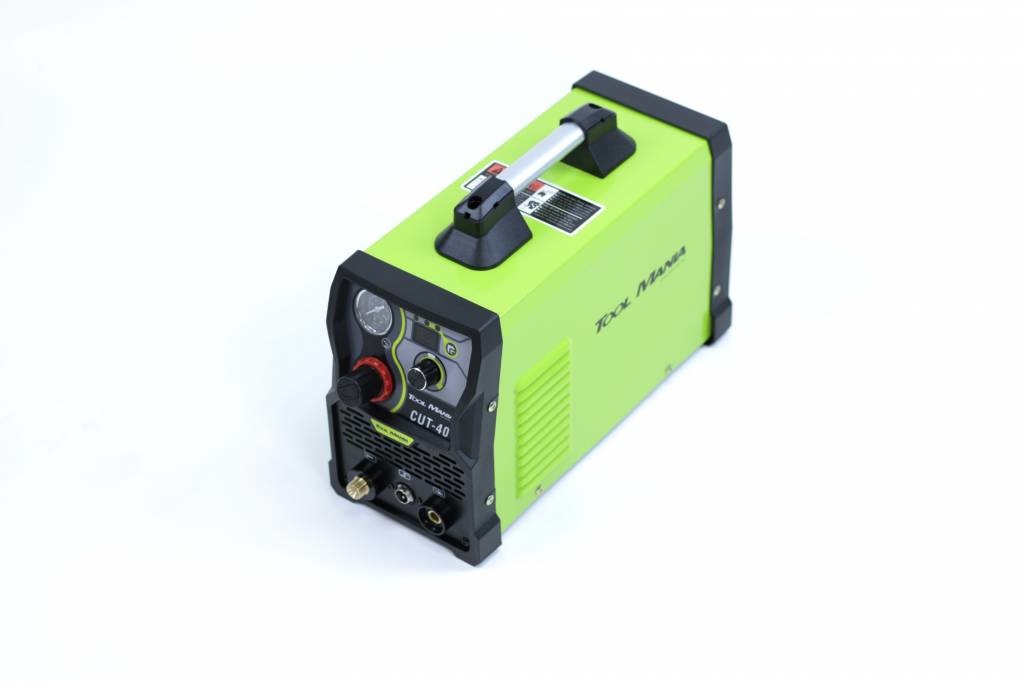

TM CUT 40 Plasma Cutter with Digital Display and IGBT Technology

  • Article code: 00003011
  • EAN: 7433649238238

399,99 199,99

Add to wishlist

  • Alle prijzen vermeld incl. BTW
  • Intern Transport mogelijk
  • Winkel en Magazijn in Sittard 4000m2
  • Veilig online betalen

Product description

TM CUT 40 Plasma Cutter with Digital Display and IGBT Technology

PAY ATTENTION !!
The welding machines and plasma cutters offered by us are of heavy professional quality, ideal for the automotive market, among others!


Many look a like models have recently been offered with the following different specifications:



  • TM uses 100% IGBT Transformer in contrast to the Competitors who supposedly offer it as IGBT Technology. Pay attention! here are just old MOS Transformers in which both durability and endurance strongly decrease to temperature Rise!
  • TM welding machines are ideal for Automotive work.
  • TM uses best electric motors where the rotation is extremely smooth.
  • TM Handles thick copper cables for smooth current conduction.
  • TM uses Insulation class F.
  • Due to the IGBT transformer, this machine scores extremely well in duty cycle%.

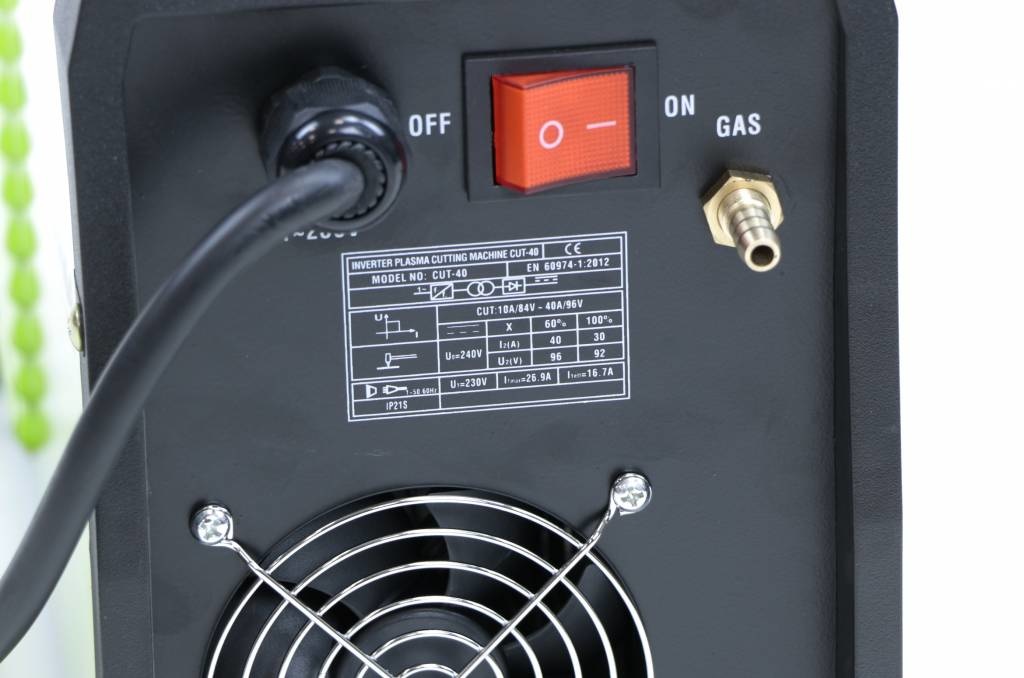

Technical data of the TM CUT 40 Plasma Cutter with Digital Display and IGBT Technology.

Voltage 230 volts.
Maximum power consumption 4.8KVA
Power factor 0.93
Control range 10 - 40 Ampere.
Maximum cutting thickness 1 - 16 mm.
Maximum duty cycle 60%
Efficiency 85%.
Frequency 50 / 60Hz.
Air consumption approx. 100 liters per minute.
Workload 4 - 6 Bar.
Open clamping voltage 96 volts.
Insulation class H.
Protection class IP21S.
Weight 8 Kg.
Dimensions 440 x 220 x 290 mm.

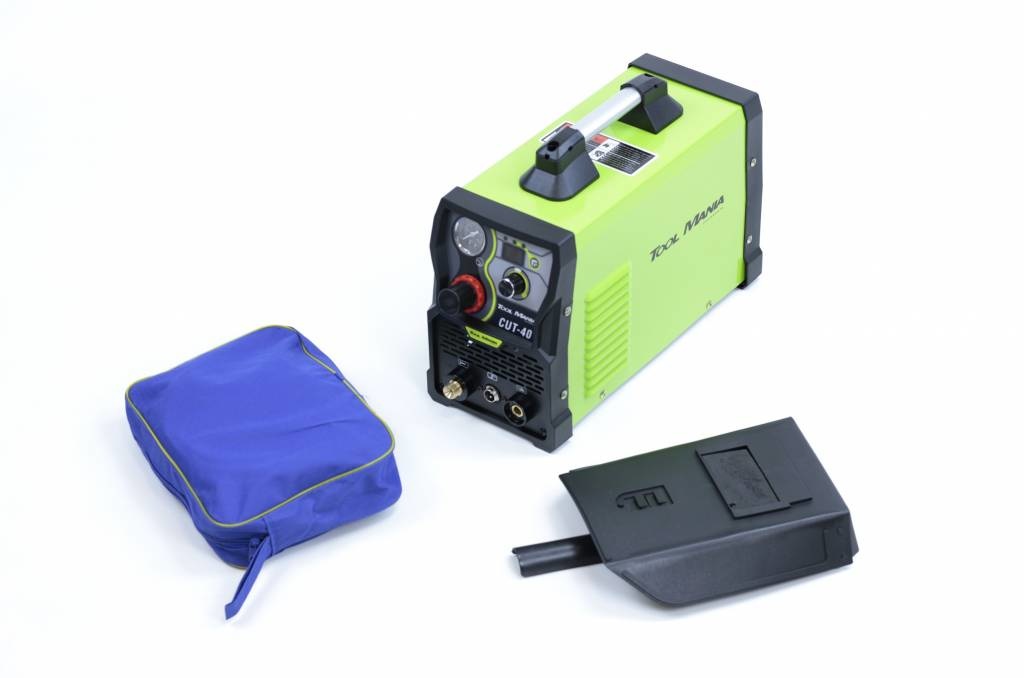

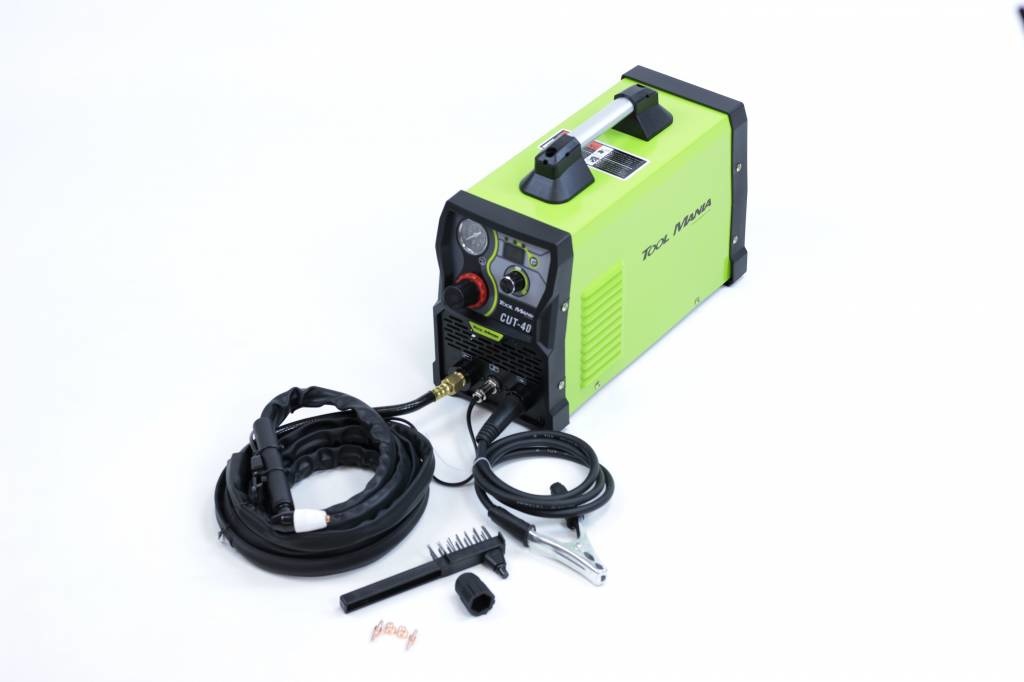

The TM CUT 40 Plasma Cutter with Digital Display and IGBT Technology comes standard with.

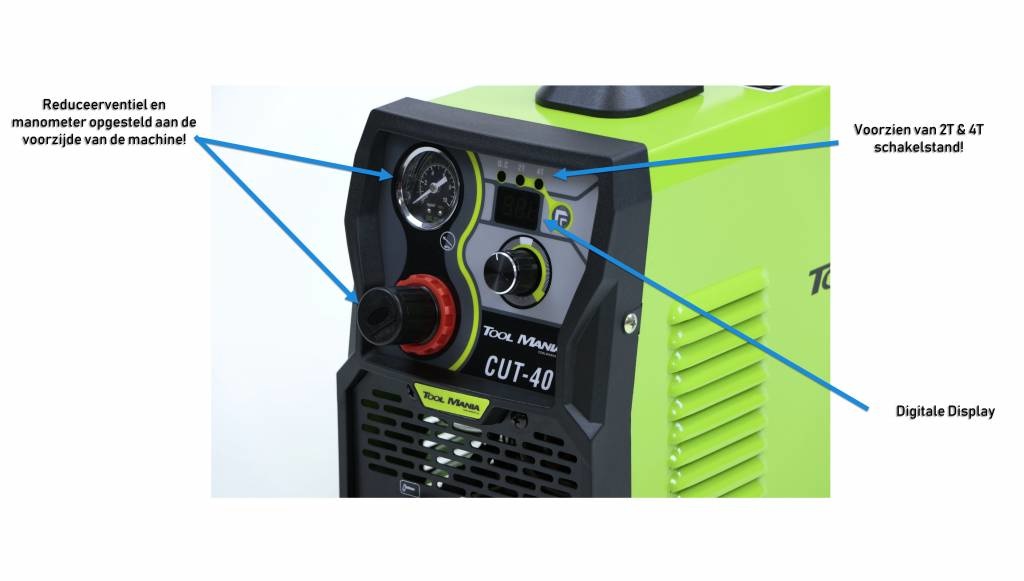

  • Digital display.
  • Overload protection.
  • Plasma cutter is equipped with both 2T and 4T switching position.
  • ground cable and plasma torch
  • Pressure reducing valve with moisture separator.



The difference between IGBT and MOS inverters:
